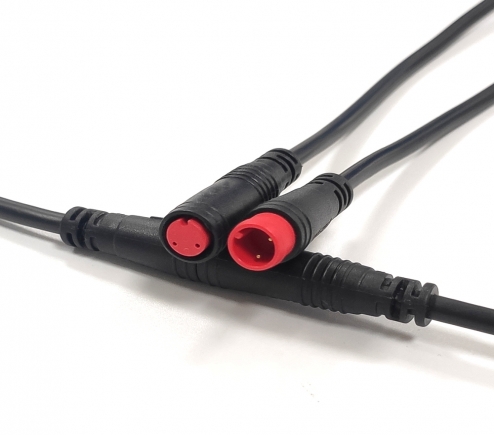

M8 Electric Bike Waterproof Connector Male Female 2pin ip65 Cable Wire Connector

DREAM 2 Pin Waterproof Connector Male / Female M10 Electrical Wire Ip67 24Awg Cable Connector Manufacturer 2 pin electric bike battery/signal red colore waterproof connector Pins numberRetedcurrentRet

Product Modle： DR-A02-2P

Click to Consult More Details

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

DREAM 2 Pin Waterproof Connector Male / Female M10 Electrical Wire Ip67 24Awg Cable Connector Manufacturer 2 pin electric bike battery/signal red colore waterproof connector

Pins number	Reted current	Reted voltage	Contact resistance	Insulation resistance	IP-Code	Cable Specifications	Cable Range
2	2A	60V AC	10mΩ	100MΩ	IP65	≤0.3mm²	0-4mm
3	2A	60V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
4	2A	60V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
5	1.5A	40V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
6	1.5A	40V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
Other Parameters Operating Rating: PVC:0~80℃ TPU:-40℃~105℃ Mechanical Life:1500 Connection Mode:Direct Plug-In

waterproof connector
