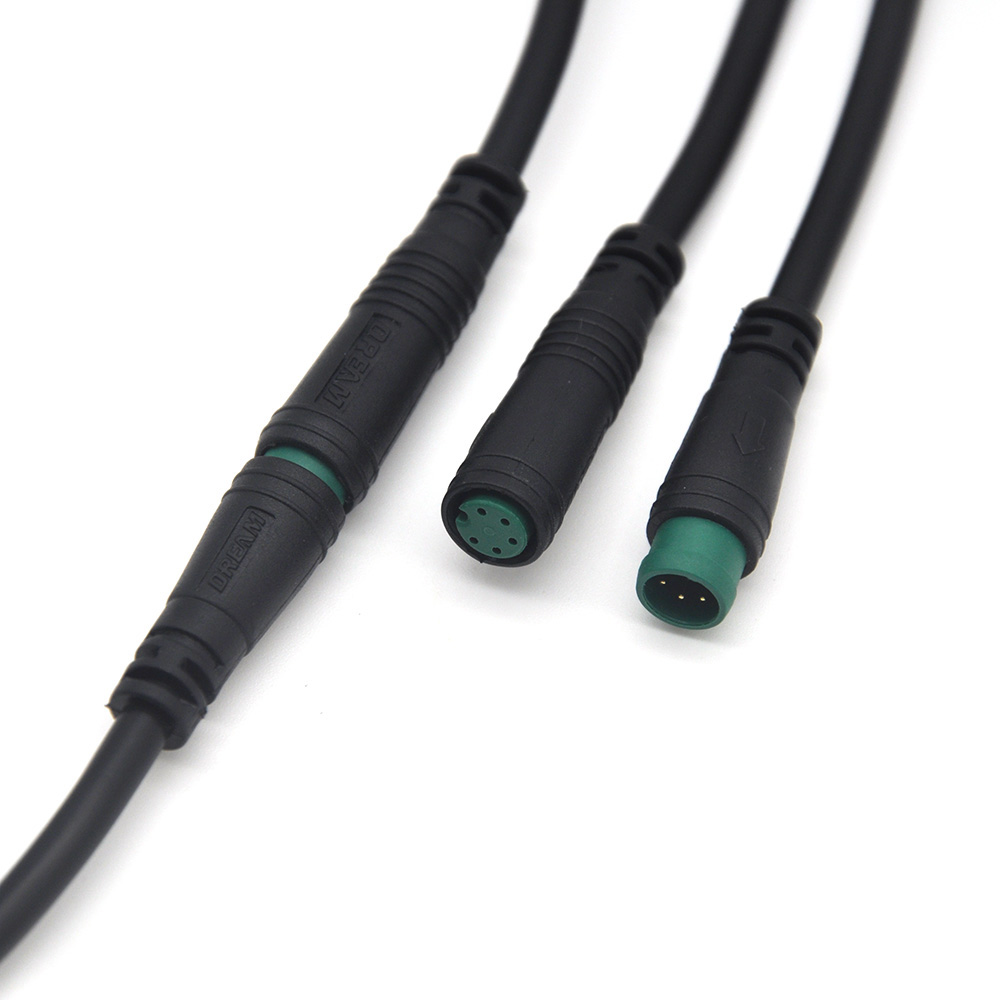

OEM / ODM M8 5Pin Circular Electric Ebike Motor Cable Connector China Manufacturer

Quick DetailsPlace of Origin:Guangdong, ChinaBrand Name:DREAM-STARTModel Number:DR-A02Type:male femaleApplication:Electric BikeGender:Male/FemaleProduct name:M8 ConnectorKeywords:waterproof connectorC

Product Modle： DR-A02-5P

Click to Consult More Details

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

Quick Details

Place of Origin:
Guangdong, China

Brand Name:
DREAM-START

Model Number:
DR-A02

Type:
male female

Application:
Electric Bike

Gender:
Male/Female

Product name:
M8 Connector

Keywords:
waterproof connector

Certificate:
ISO9001

Rated Voltage:
60V

Rated Current:
≤2.5A

Contact resistance:
10 MΩ

Male size:
8.6*30mm

Female size:
8.6*33.5mm

Male Pin Diameter:
0.6 mm

Wire Specifications:
28AWG---22AWG

Pins number	Reted current	Reted voltage	Contact resistance	Insulation resistance	IP-Code	Cable Specifications	Cable Range
2	2A	60V AC	10mΩ	100MΩ	IP65	≤0.3mm²	0-4mm
3	2A	60V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
4	2A	60V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
5	1.5A	40V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
6	1.5A	40V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
Other Parameters Operating Rating: PVC:0~80℃ TPU:-40℃~105℃ Mechanical Life:1500 Connection Mode:Direct Plug-In

waterproof connector
