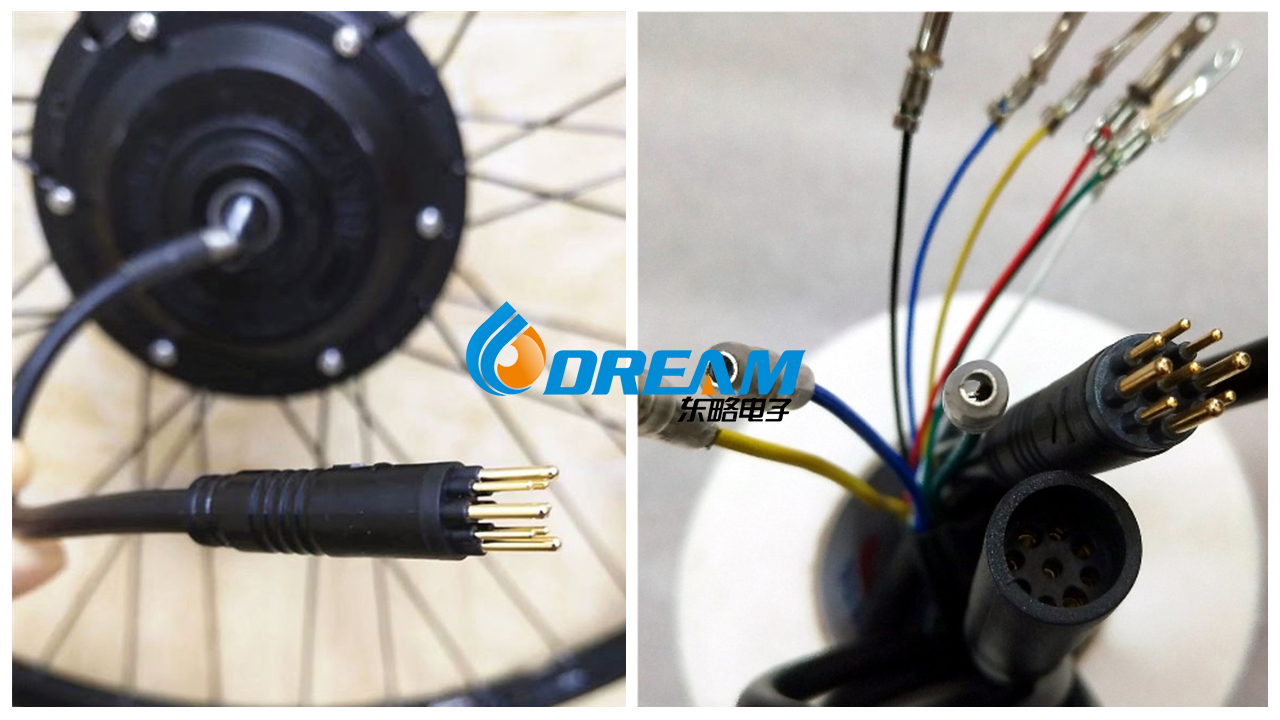

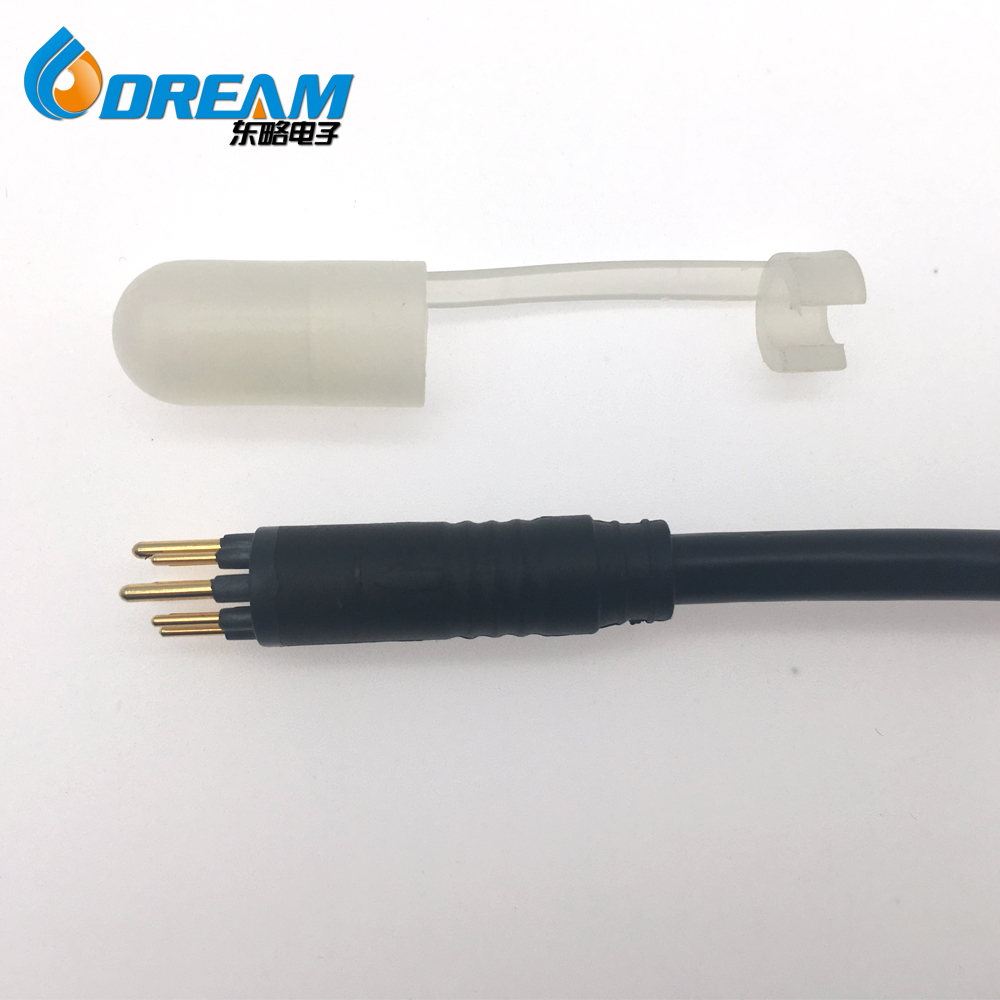

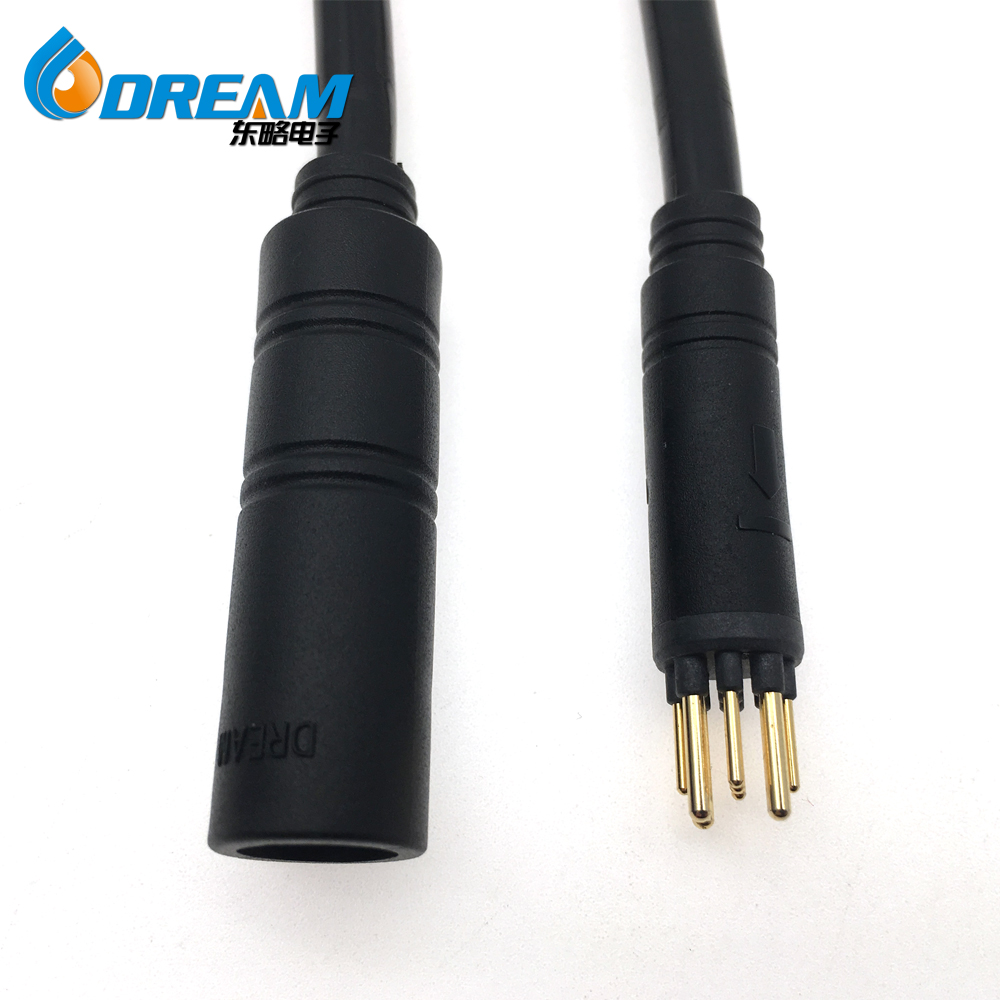

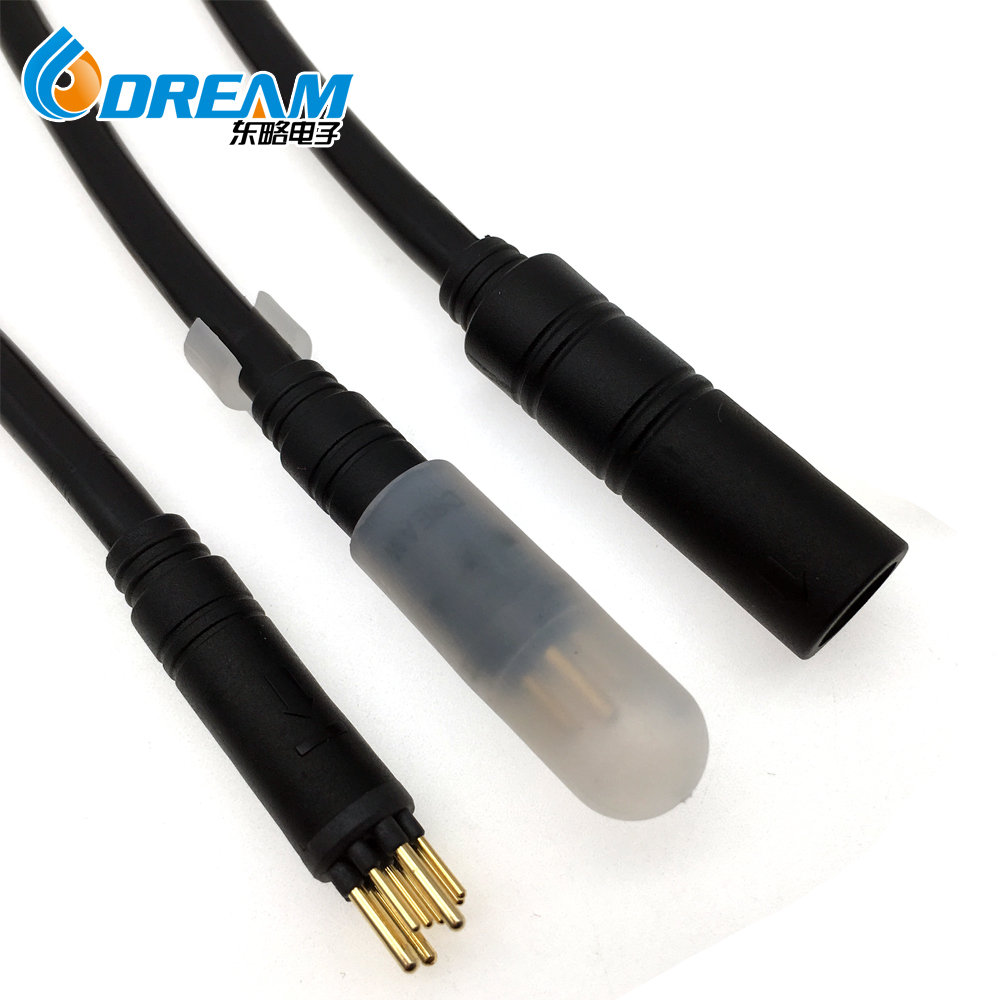

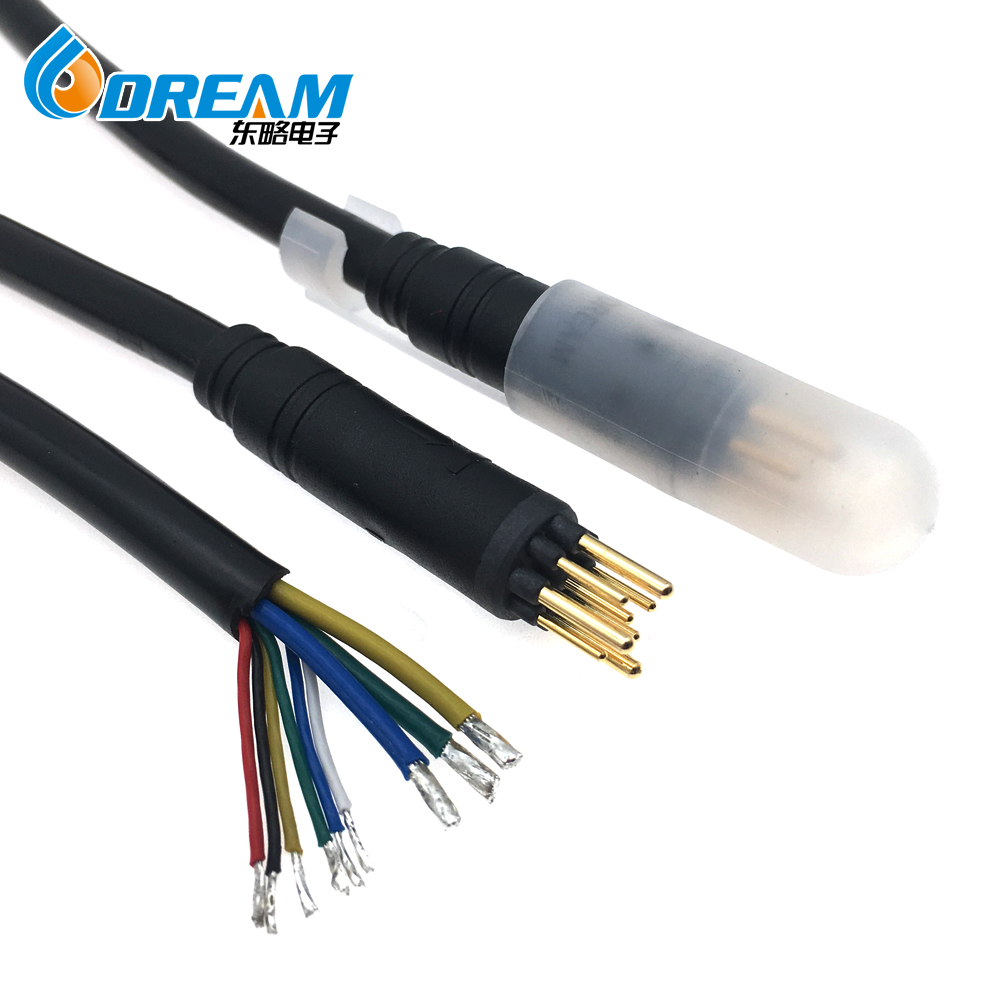

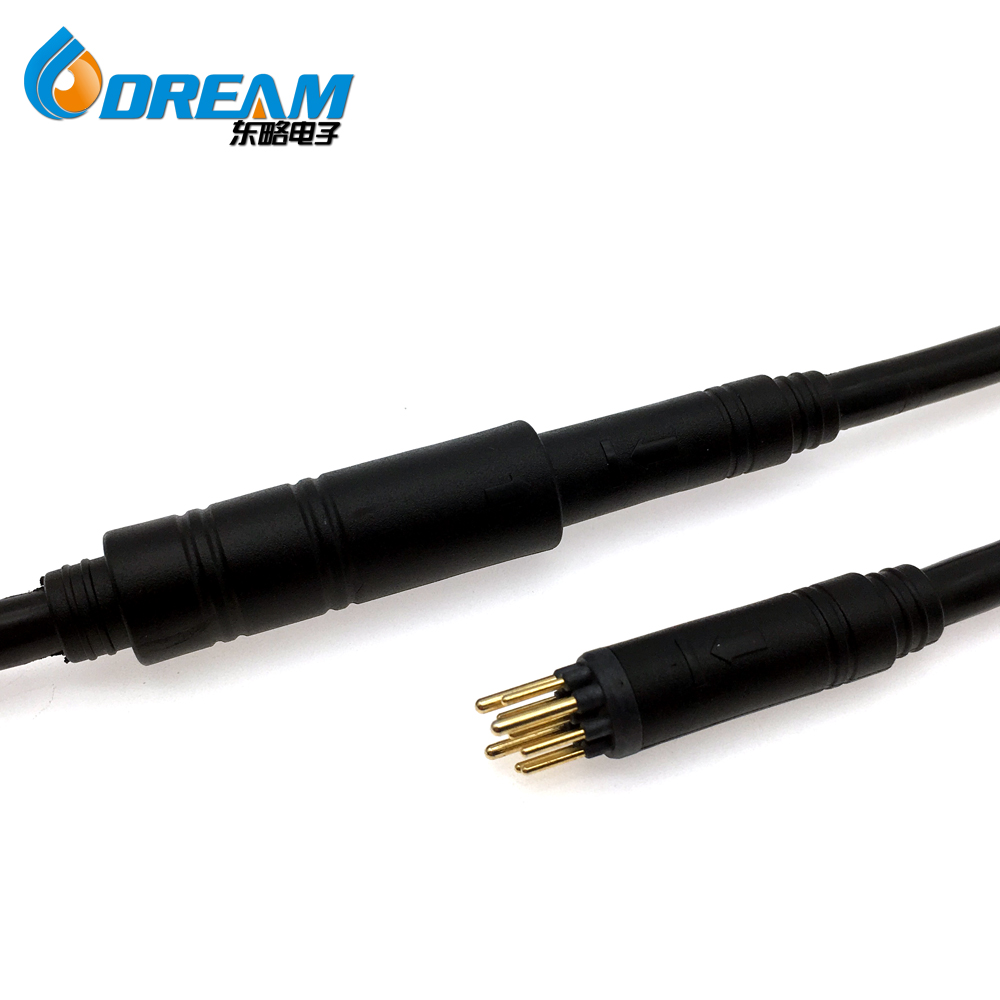

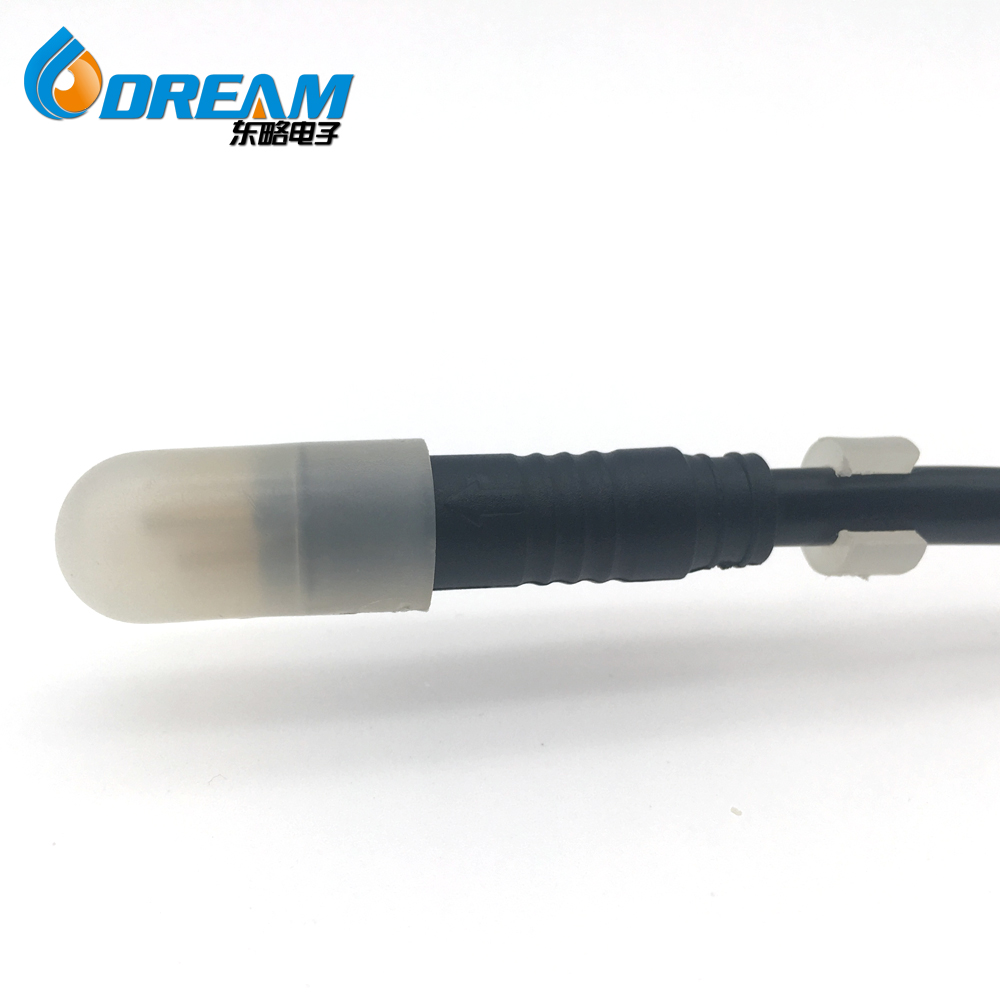

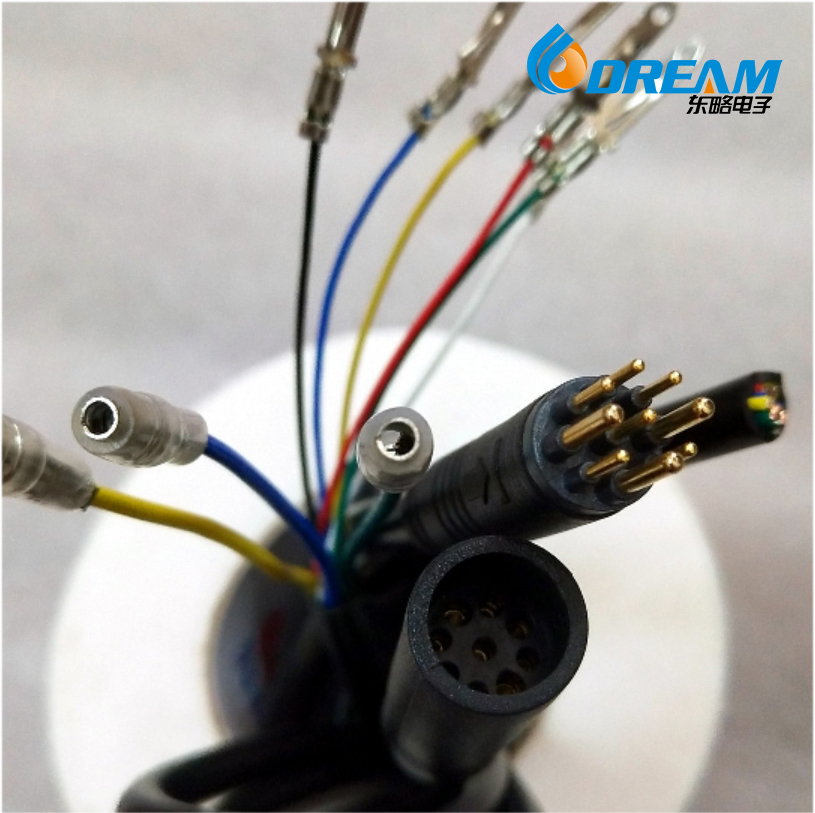

DR-B06 9 Pin IP65 Ebike Connector Male or Female Circular Connector Electric Motor Connector

Quick DetailsPlace of Origin:Guangdong, ChinaBrand Name:DREAM-STARTModel Number:DR-B06Type:male femaleApplication:Electric BikeGender:Male/FemaleProduct name:Electric Motor ConnectorKeywords:waterproo

Product Modle： DR-B06

Click to Consult More Details

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

Quick Details

Place of Origin:
Guangdong, China

Brand Name:
DREAM-START

Model Number:
DR-B06

Type:
male female

Application:
Electric Bike

Gender:
Male/Female

Product name:
Electric Motor Connector

Keywords:
waterproof connector

Certificate:
ISO9001

Rated Voltage:
60V

Rated Current:
15A

Contact resistance:
10 MΩ

Male/Female Pin Diameter:

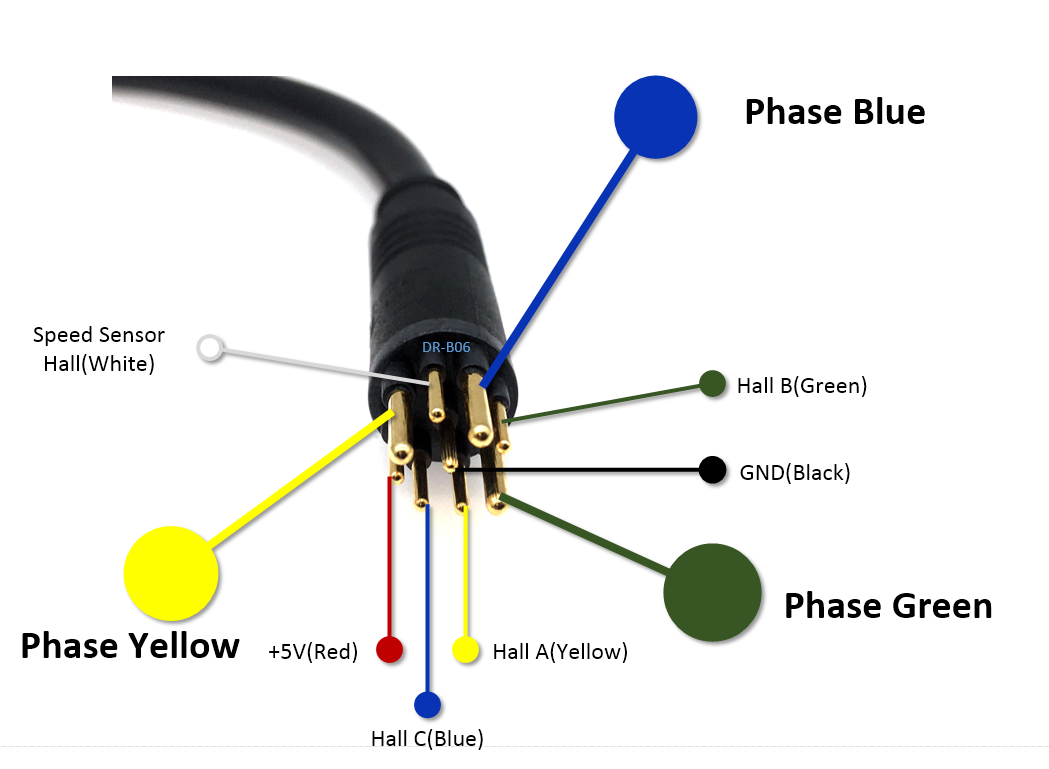

3*1.5mm+6*1.0mm

Wire Specifications:
24AWG----14AWG

Mechanical Property
Contact Numbers	2Pin	3+3Pin	3+6Pin
Male/Female Pin Diameter	φ2.35	3φ1.5+3φ1.0mm	3φ1.5+6φ1.0mm
Over-Mold Material	PVC, TPU
Insulator Material	PA66
Wire Gague	24AWG----14AWG
Cable Range	φ5.0---φ7.0
IP Rating	IP66
Temperature Environment	PVC:0~80℃; TPU: -40℃~+125℃
Mechanical Life	1000
Electrical Property
Rated Current	15A	10A+2A	10A+2A
Rated Voltage	250V	60V	60V
Test Voltage	1000V	500V	500V
Contact Resistance	10MΩ	10MΩ	10MΩ
Insulation Resistance	100MΩ	100MΩ	100MΩ

waterproof connector
