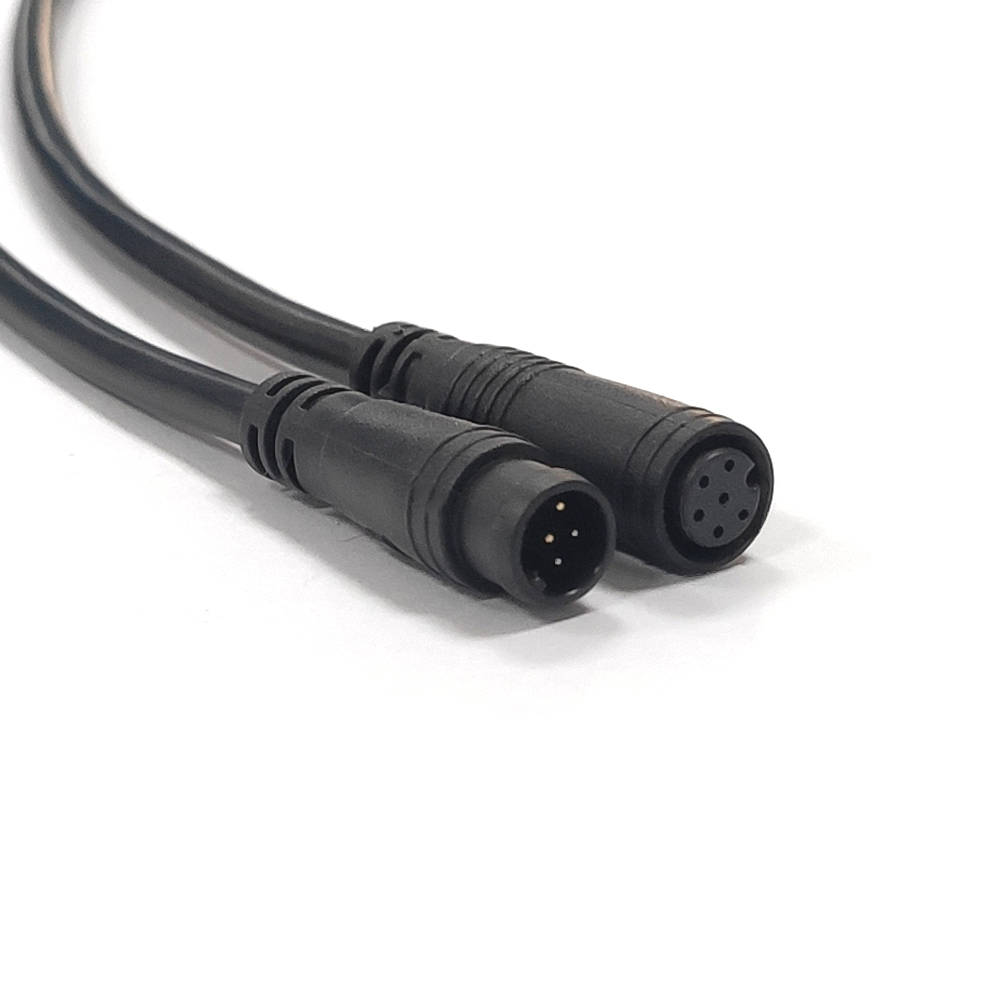

M8 IP65 6pin Electric Bike Low Voltage Wire Male Female Waterproof Low Voltage Connector

Quick DetailsPlace of Origin:Guangdong, ChinaBrand Name:DREAM-STARTModel Number:DR-A02Type:male femaleApplication:Electric BikeGender:Male/FemaleProduct name:M8 ConnectorKeywords:waterproof connectorC

Product Modle： DR-A02-6P

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

Quick Details

Place of Origin:
Guangdong, China

Brand Name:
DREAM-START

Model Number:
DR-A02

Type:
male female

Application:
Electric Bike

Gender:
Male/Female

Product name:
M8 Connector

Keywords:
waterproof connector

Certificate:
ISO9001

Rated Voltage:
60V

Rated Current:
≤2.5A

Contact resistance:
10 MΩ

Male size:
8.6*30mm

Female size:
8.6*33.5mm

Male Pin Diameter:
0.6 mm

Wire Specifications:
28AWG---22AWG

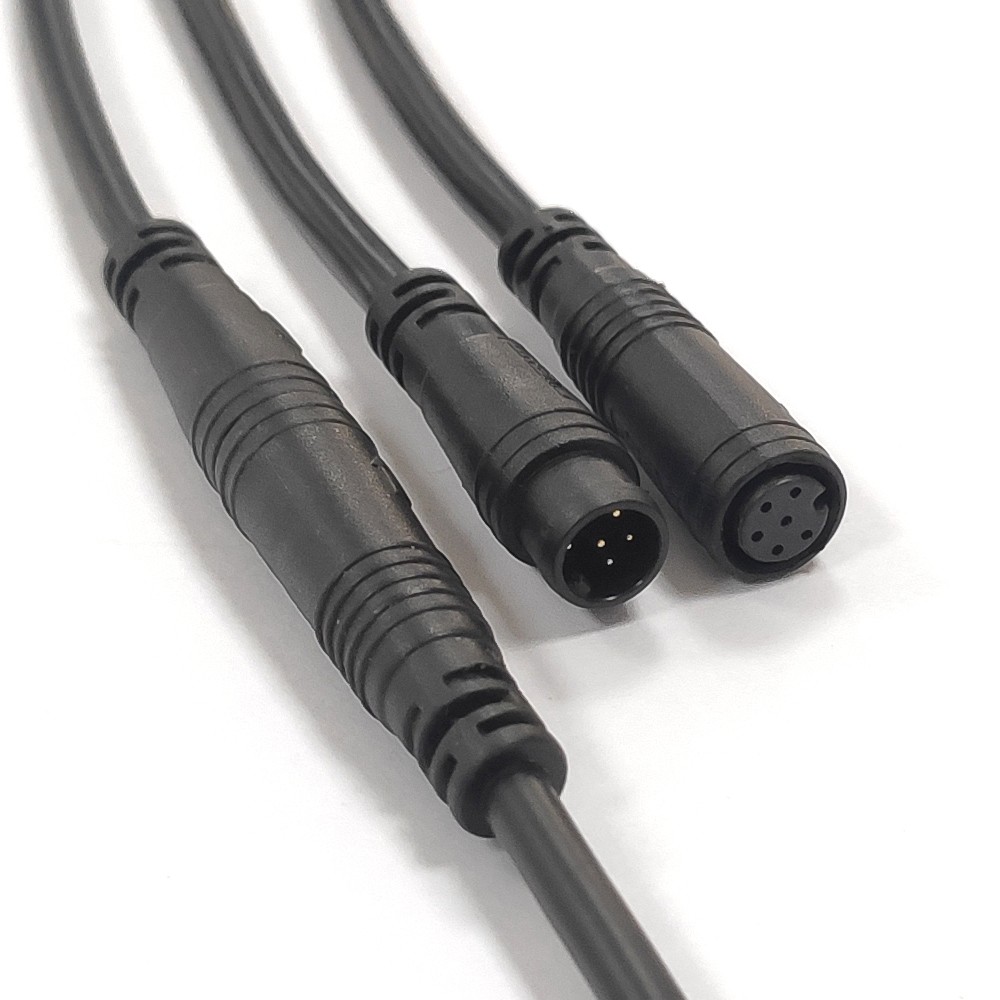

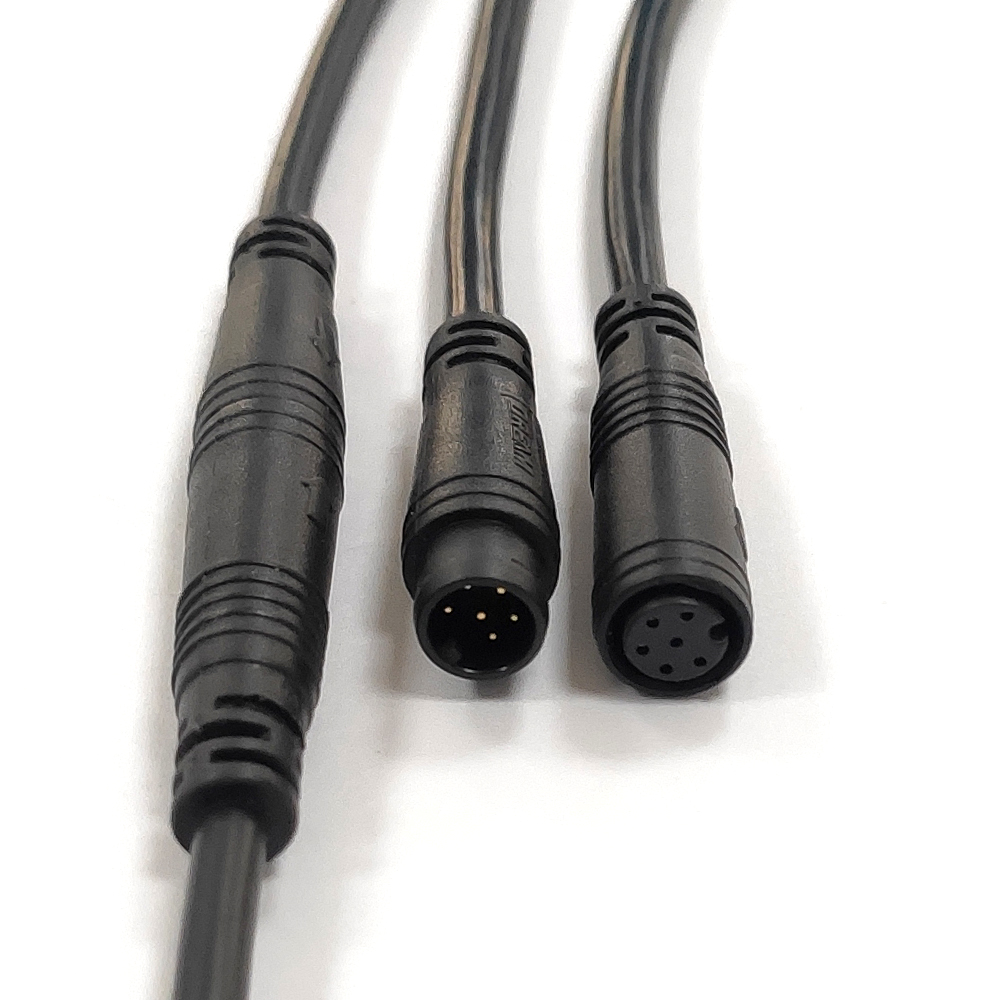

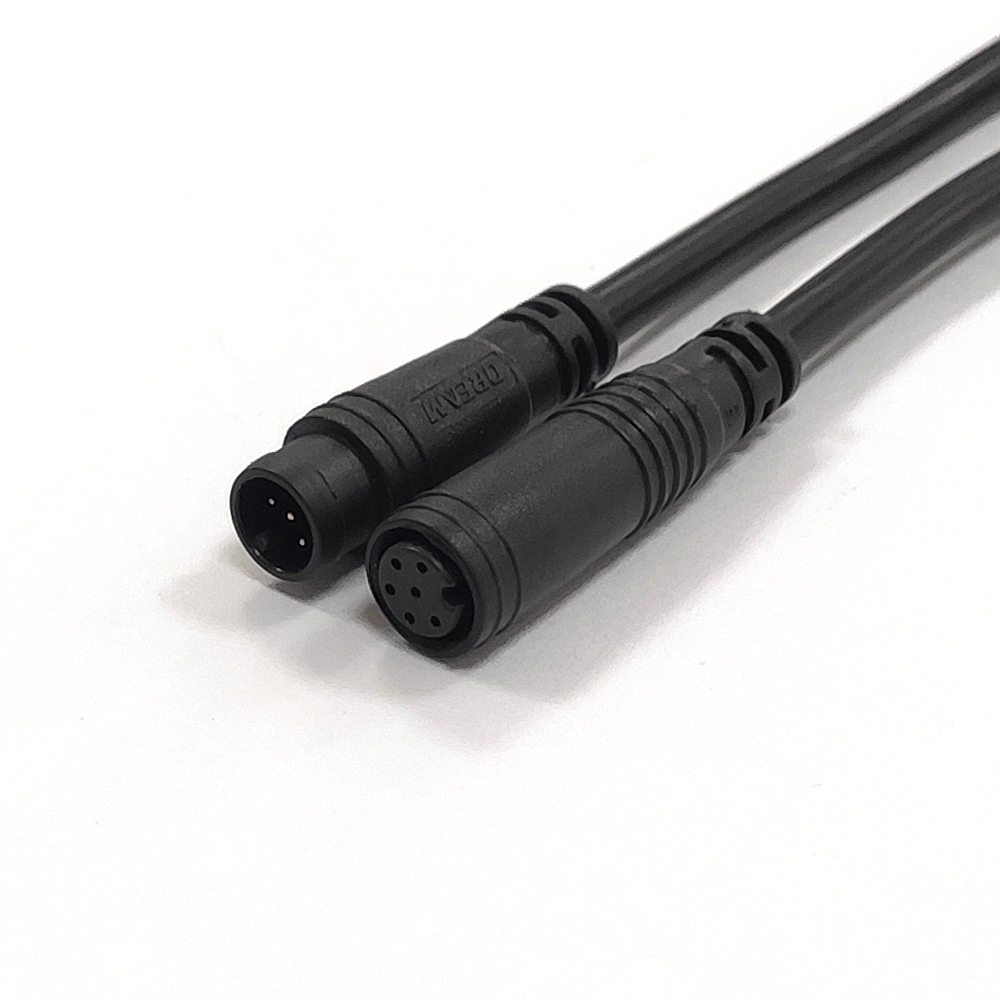

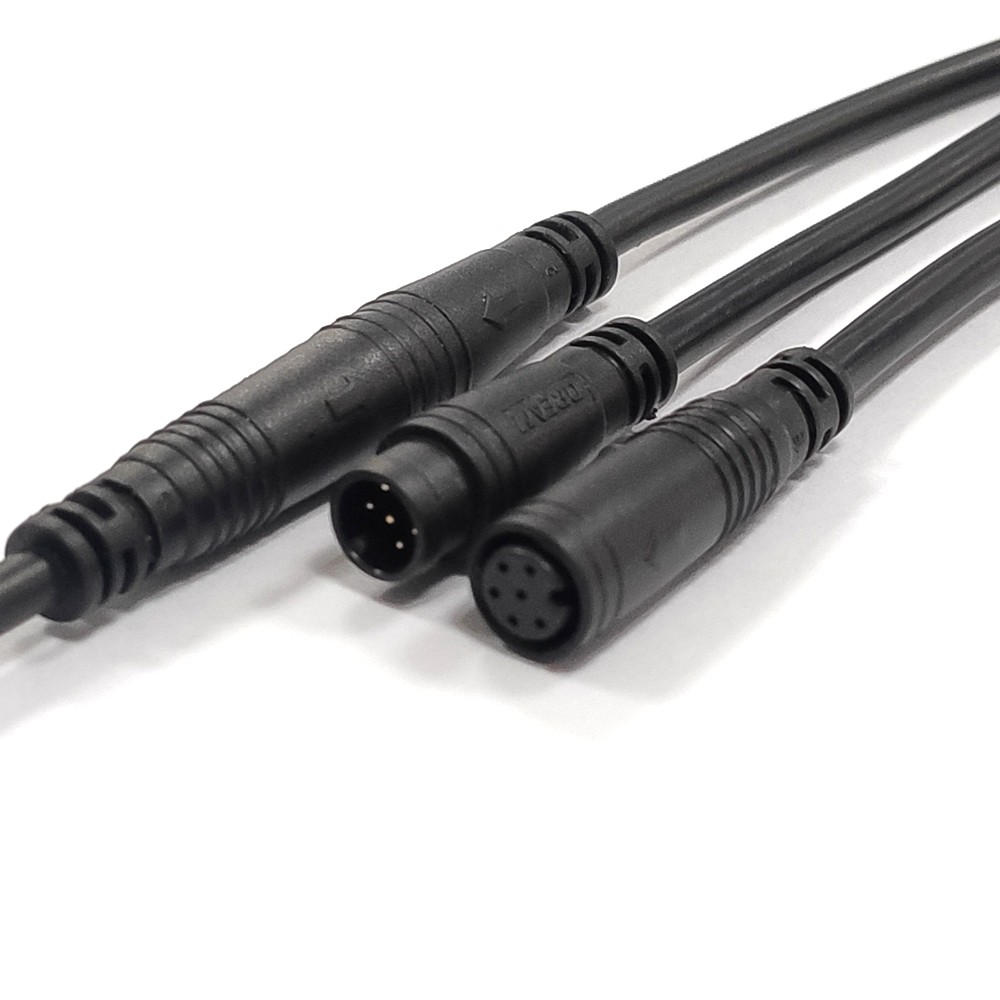

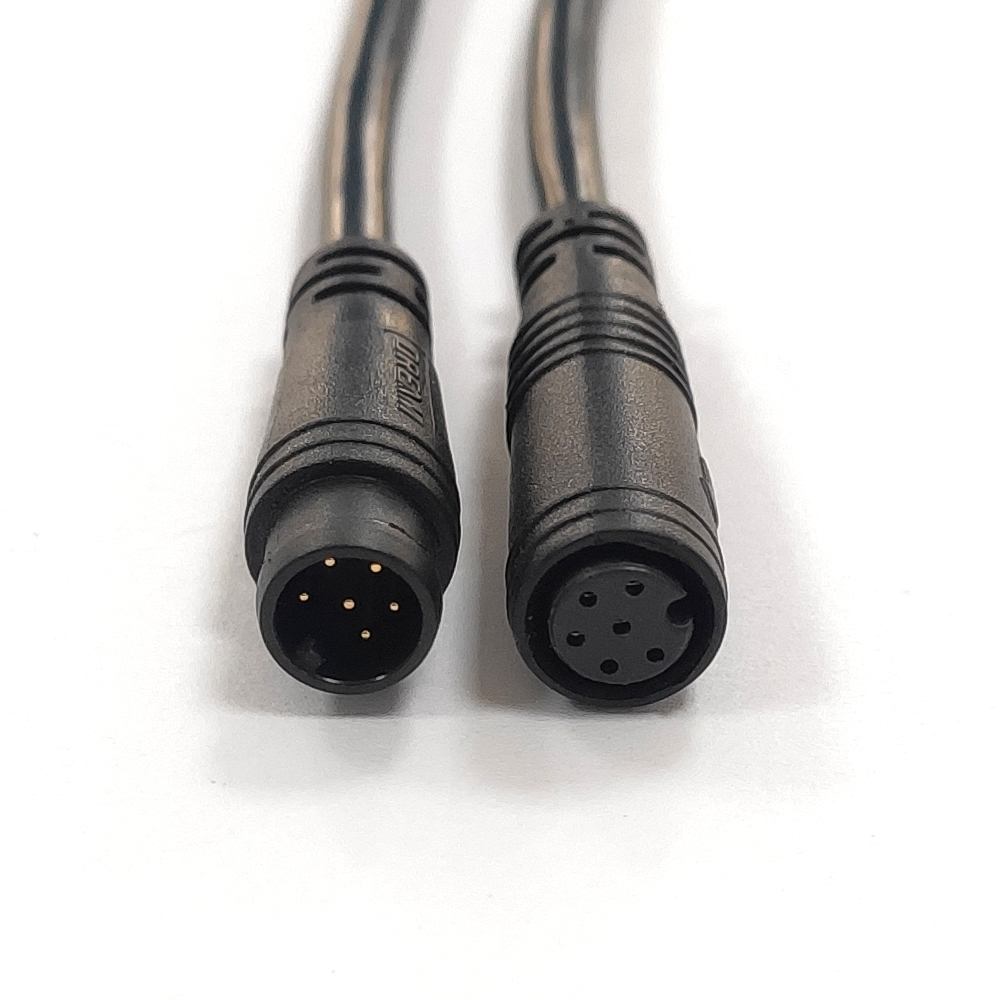

M8 IP65 Electric Bike Low Voltage Wire Male Female Waterproof Low Voltage Connector
1). Direct plug-in docking assembly, simple to use and convenient installation;
2). For low voltage, low current of signal products tailored;
3). The plug with compact structure and dainty appearance, is more suitable for the demand;
4). Innovation and development in 2008, the first generation of electric bicycle universal signal lines.
5). Mainly used for led strip, electric bicycle accessories and other signal lines.

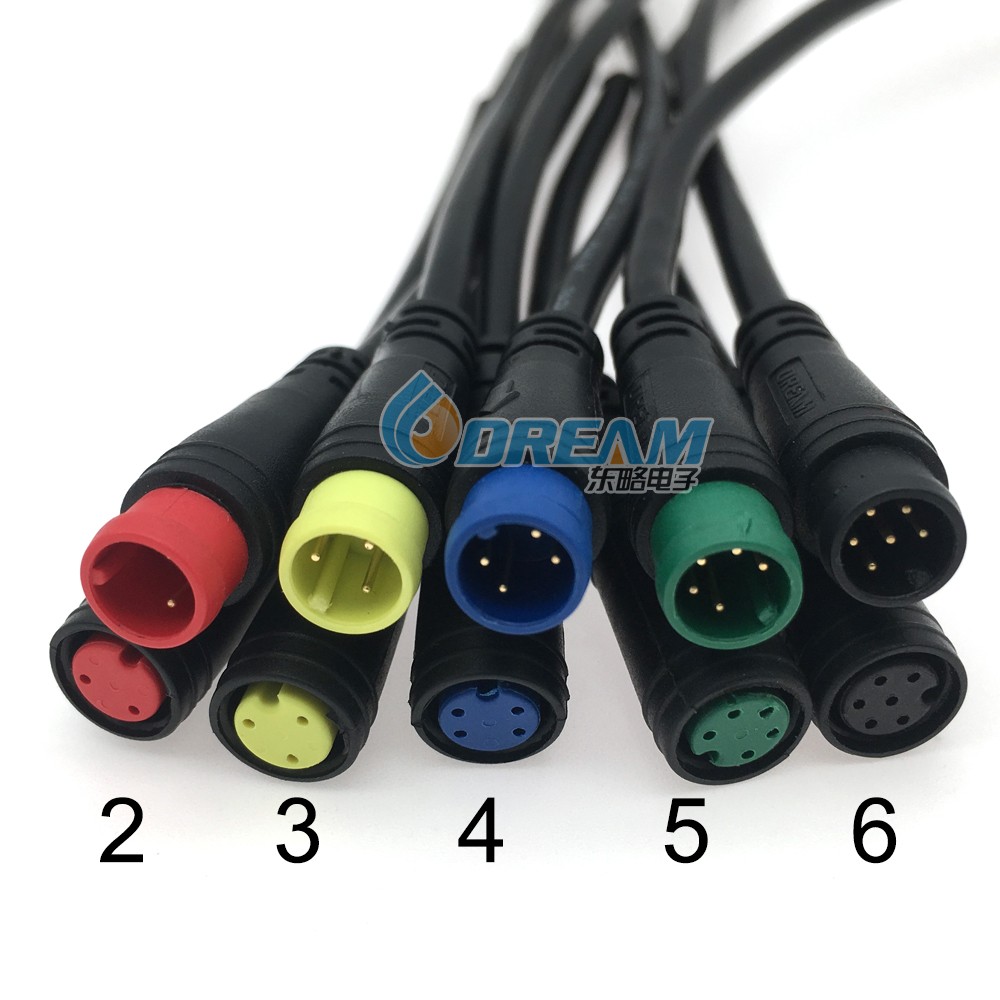

Pins number	Reted current	Reted voltage	Contact resistance	Insulation resistance	IP-Code	Cable Specifications	Cable Range
2	2A	60V AC	10mΩ	100MΩ	IP65	≤0.3mm²	0-4mm
3	2A	60V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
4	2A	60V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
5	1.5A	40V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
6	1.5A	40V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
Other Parameters Operating Rating: PVC:0~80℃ TPU:-40℃~105℃ Mechanical Life:1500 Connection Mode:Direct Plug-In

waterproof connector

M8 IP65 6pin Electric Bike Low Voltage Wire Male Female Waterproof Low Voltage Connector
