IP65 2 3 4 5 6 PinMale Female M6 M7 M8 Waterproof Connector

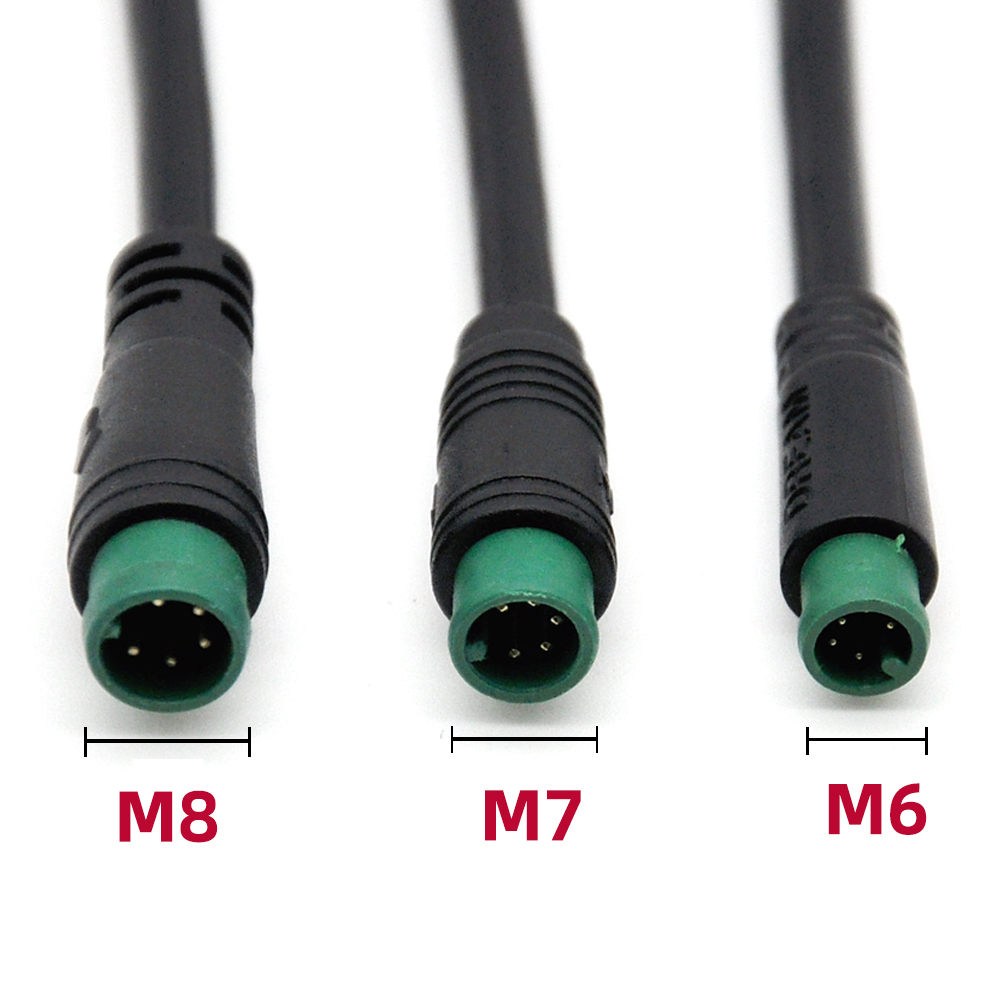

M8 M7 M6 IP65 Ebike Waterproof Connectors

Product Modle： DR-A02-M8

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

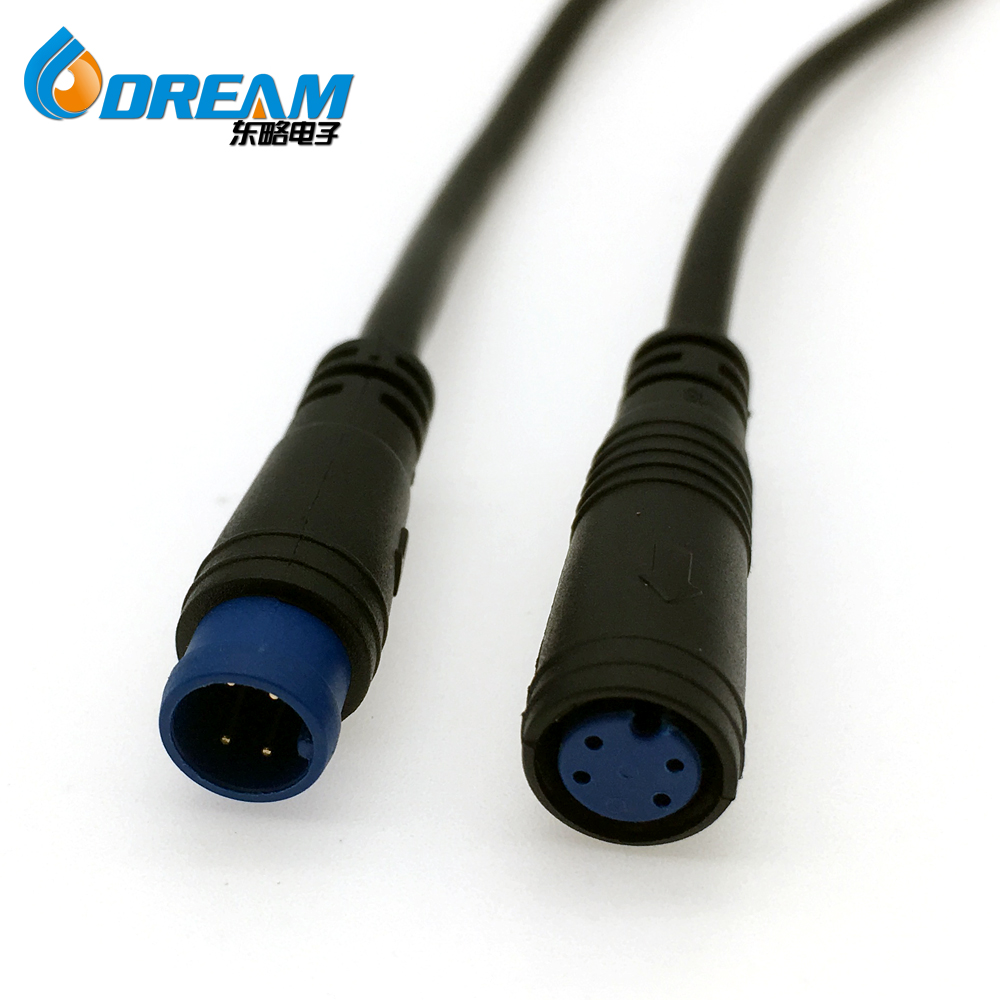

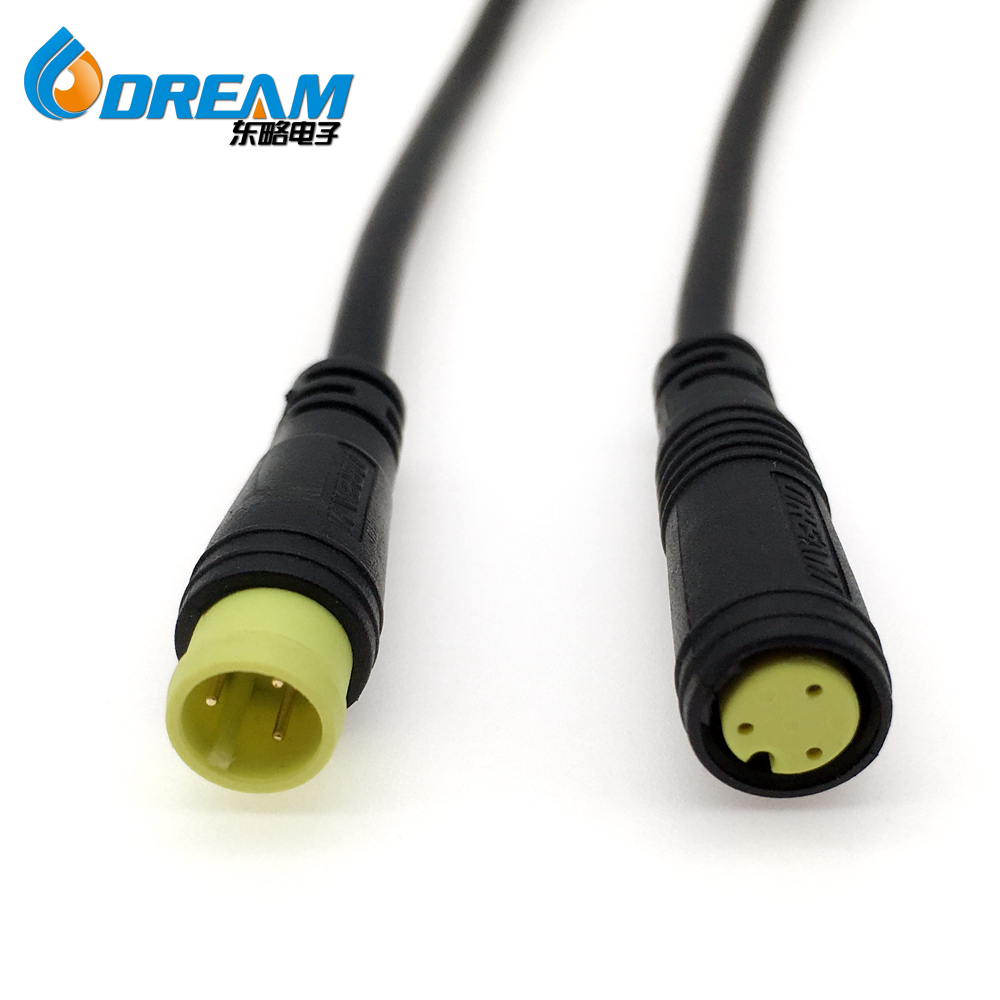

IP65 2 3 4 5 6 PinMale Female M6 M7 M8 Waterproof Connector
1). Direct plug-in docking assembly, simple to use and convenient installation;
2). For low voltage, low current of signal products tailored;
3). The plug with compact structure and dainty appearance, is more suitable for the demand;
4). Innovation and development in 2008, the first generation of electric bicycle universal signal lines.

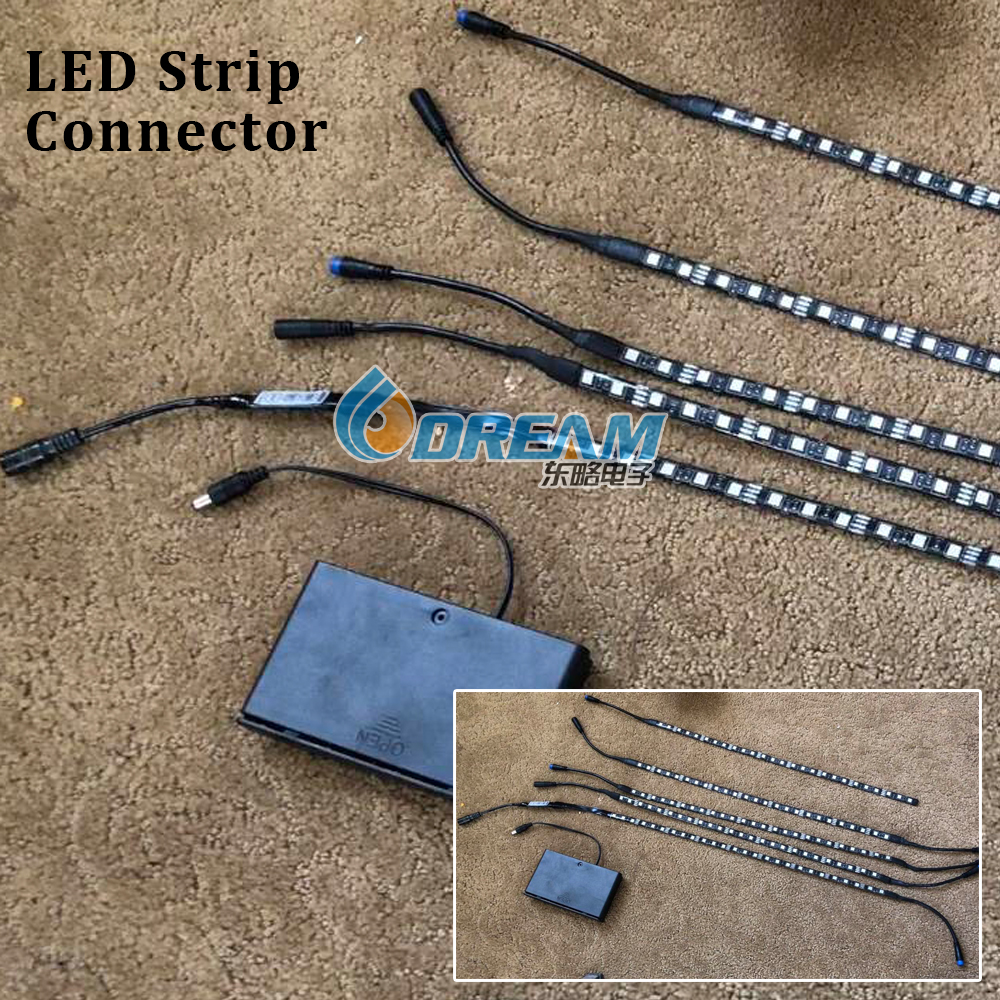

5). Mainly used for led strip, electric bicycle accessories and other signal lines.

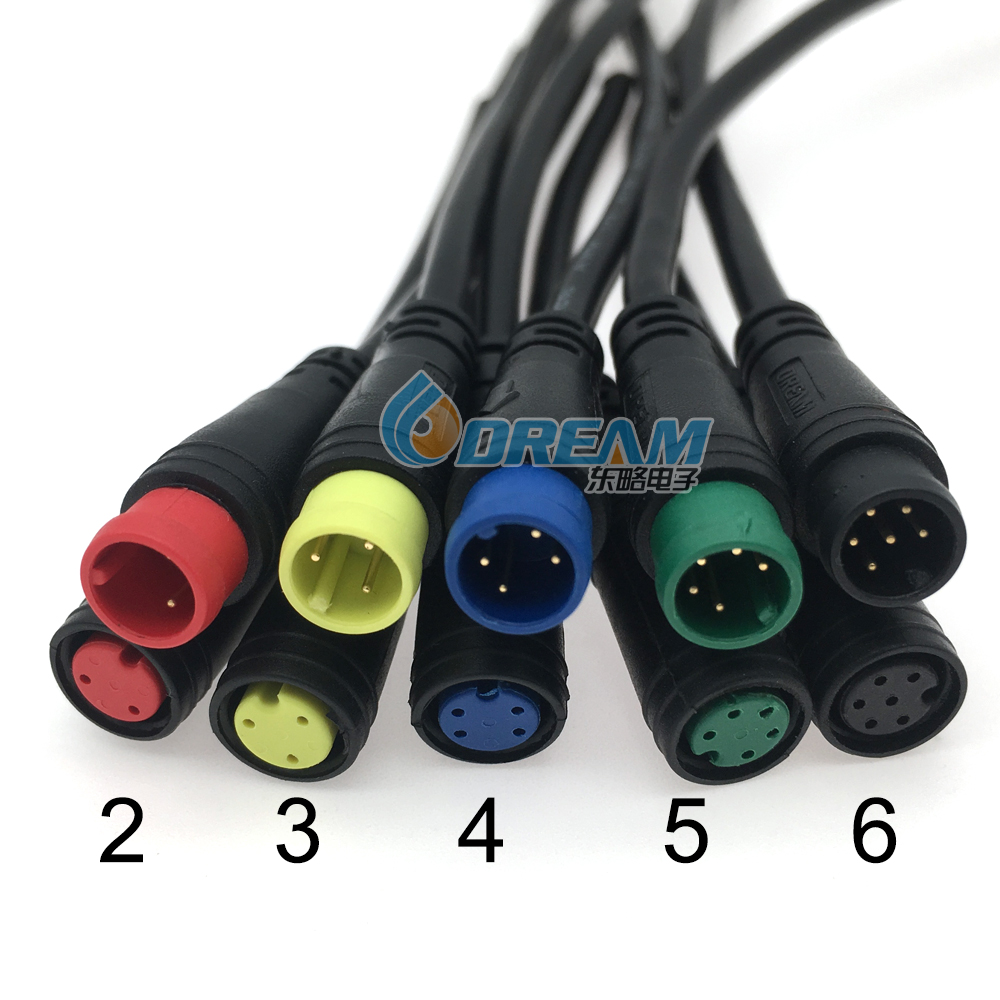

Pins number	Reted current	Reted voltage	Contact resistance	Insulation resistance	IP-Code	Cable Specifications	Cable Range
2	2A	60V AC	10mΩ	100MΩ	IP65	≤0.3mm²	0-4mm
3	2A	60V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
4	2A	60V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
5	1.5A	40V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
6	1.5A	40V AC	10mΩ	100MΩ	IP65	≤0.2mm²	0-4mm
Other Parameters Operating Rating: PVC:0~80℃ TPU:-40℃~105℃ Mechanical Life:1500 Connection Mode:Direct Plug-In

waterproof connector
