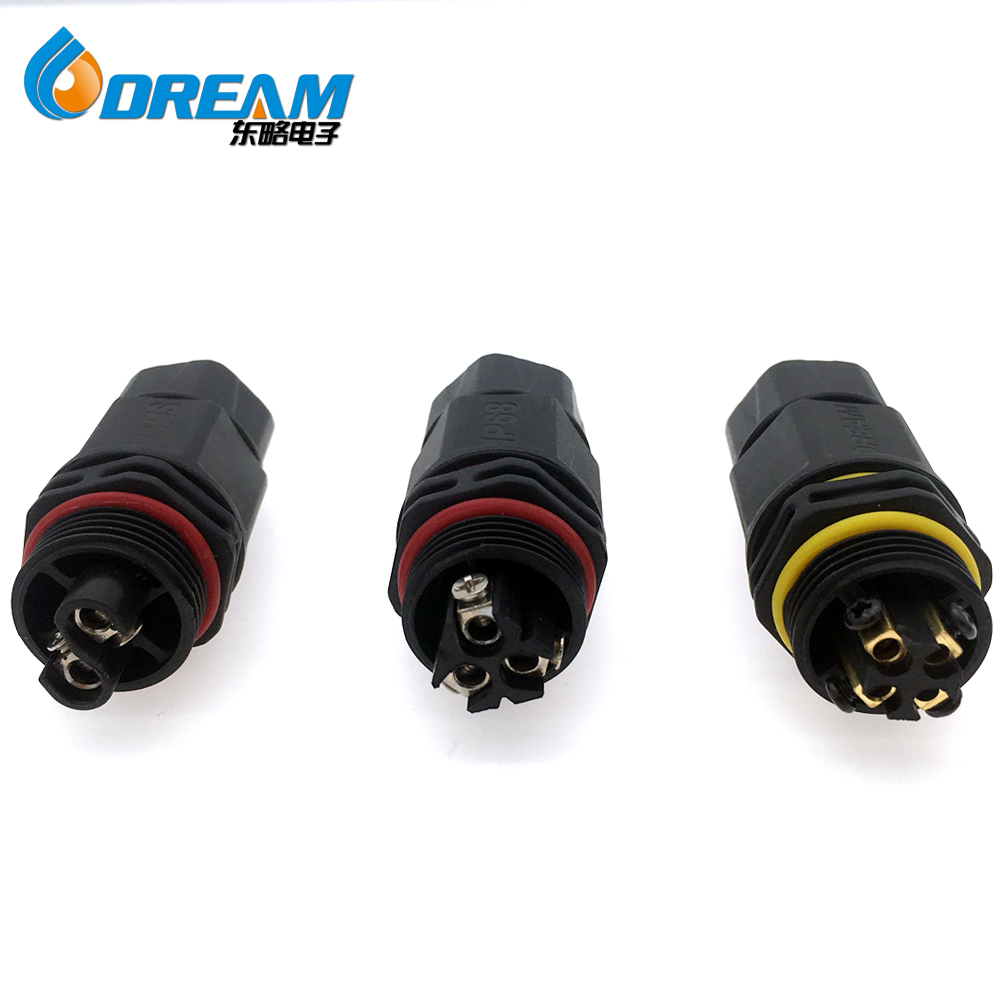

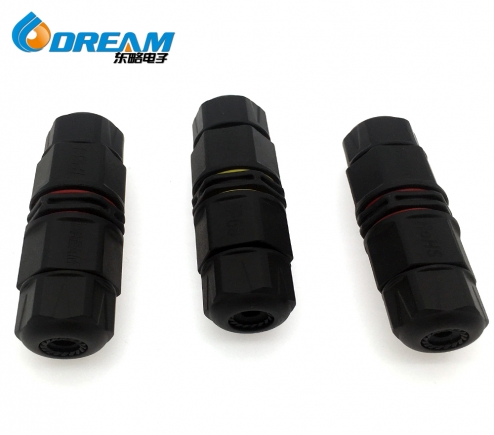

IP68 M20 3Pin Screw Type LED Power Electrical Cable Assembly Waterproof Power Quick Connector For Lighting

Product Modle： DR-E01-M20

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

IP68 M20 3Pin Screw Type LED Power Electrical Cable Assembly Waterproof Power Quick Connector For Lighting
Nut type docking assembly, simple to use and convenient installation;
Integrating current and signal transmission in one of the multifunctional integrated circular connector;
The material of products in nylon fiber grealy improves product durability and safety;
The pins with gold-plated ensure the conducting performance's stability and security;

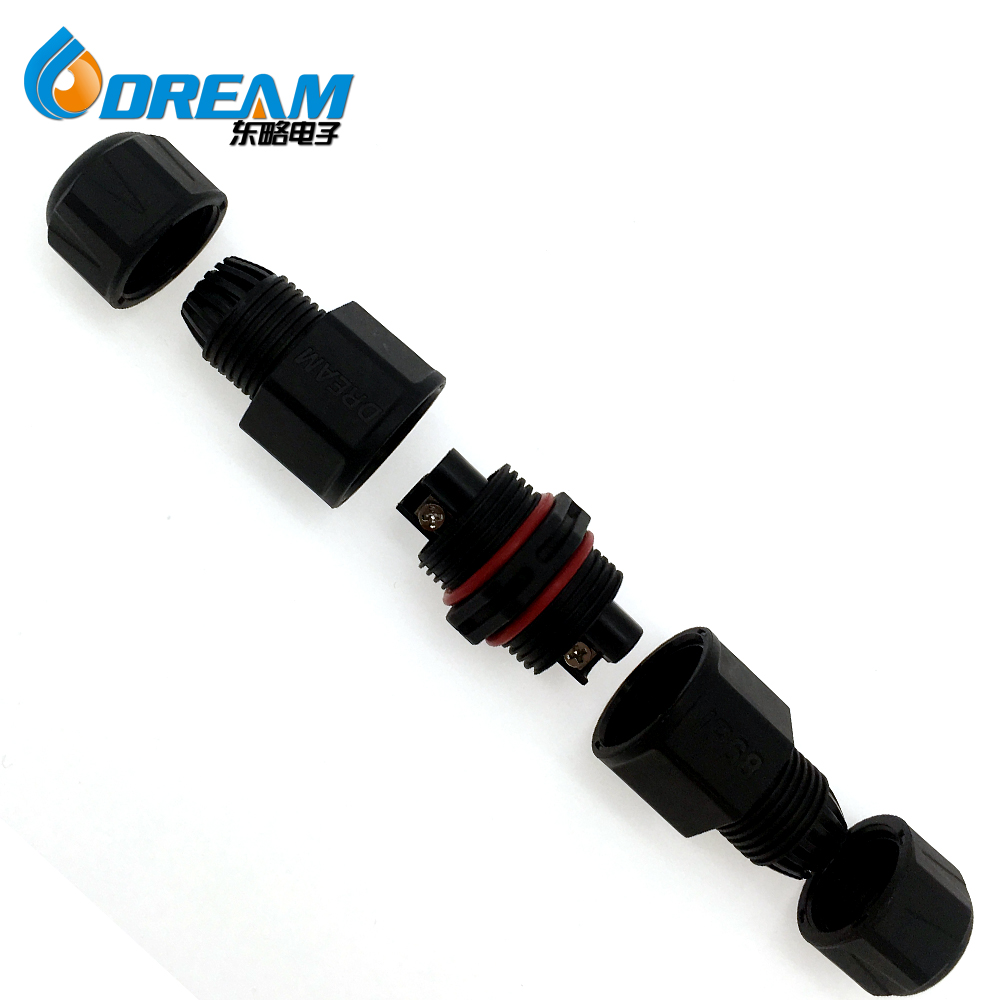

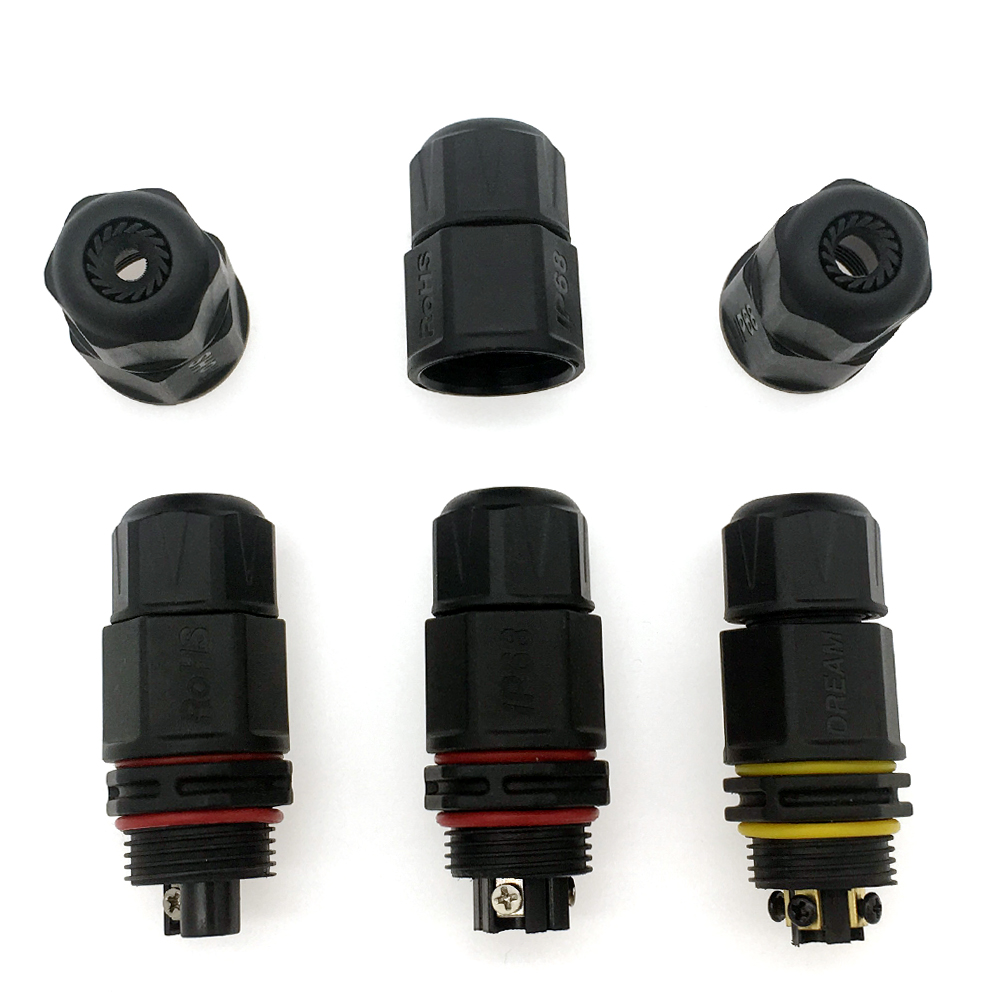

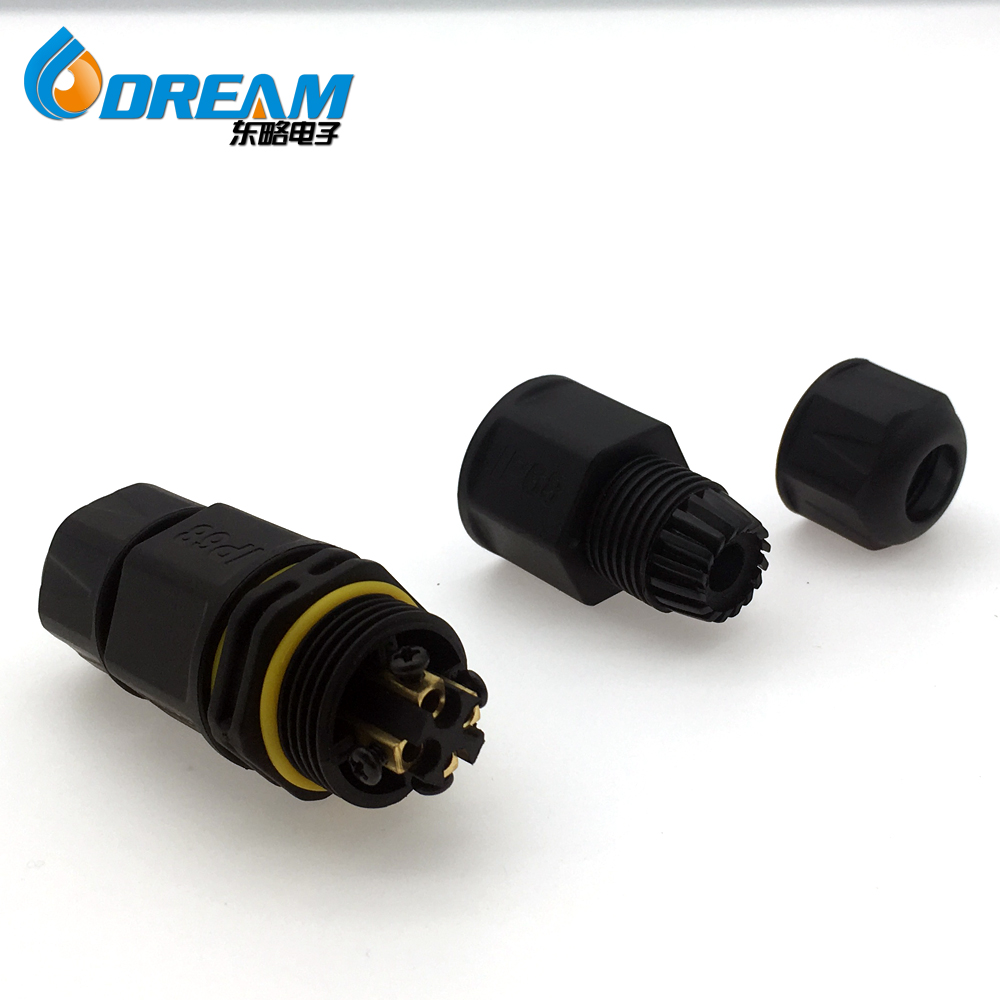

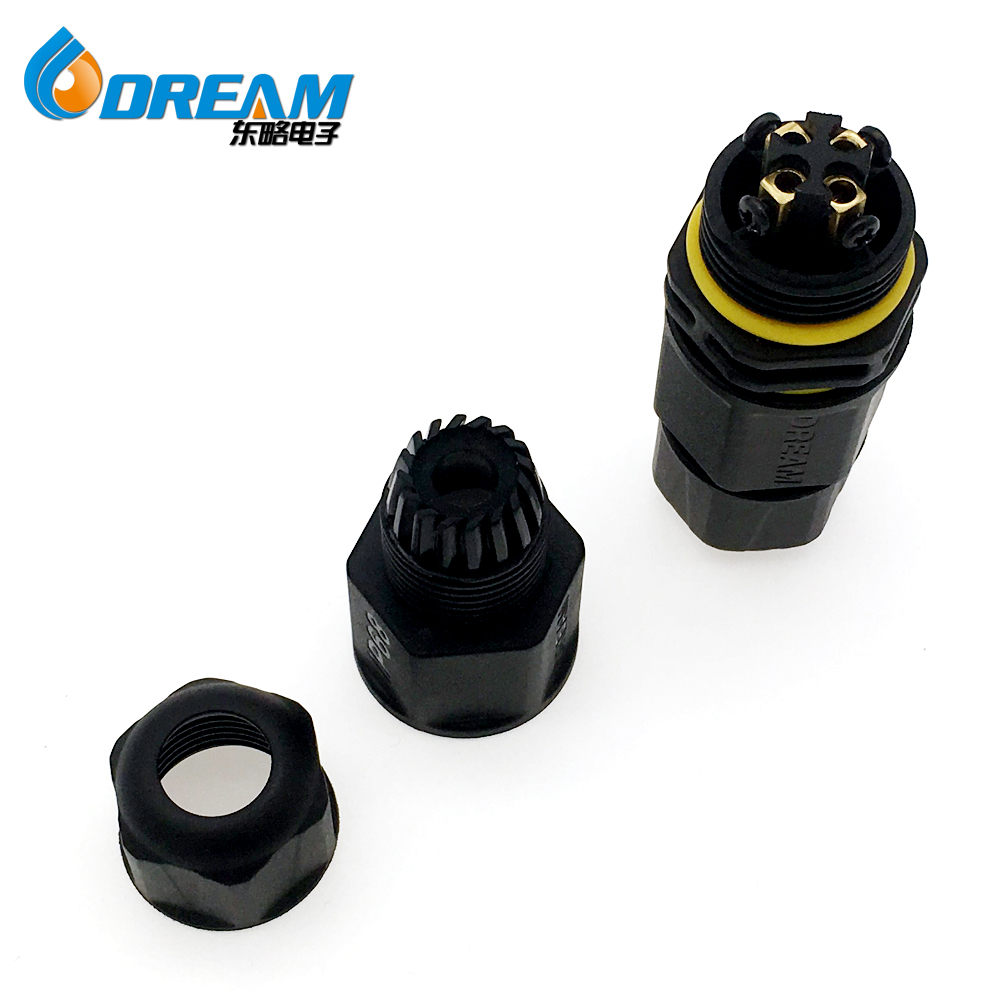

Combined structure, the connector can be parted into different components. Customers can just purchase the connector, then
assemble and weld it according to the demand.
Mainly used for outdoor display screens and other upscale products.

Cable Specification	<1.5mm² (4pin)
Cable range	6-10mm
Pins Material	Copper/Copper alloy(Gold plating/Nickel plating)
External Mold Material	PVC, TPU
Operation Rating	PA66+30%GF, -40℃ ~ +125℃
Working temperature	-25℃ ~ +105℃
Storage temperature	-25℃ ~ +80℃
Protection Class	IP68
Relative Humidity	≤90%

waterproof connector

Contact Cores	Rated Current	Rated Voltage	Contac tResistance	Insulation Resistance	Protective Level	Wire Spec1f1cat1ons	Wire Diameter
2	20A	250V AC	10M Ω	20M Ω	IP68	≤2.5 mm²	6-10mm
3	20A	250V AC	10M Ω	20M Ω	IP68	≤1.5 mm²	6-10mm
4	20A	250V AC	10M Ω	20M Ω	IP68	≤1.5 mm²	6-10mm
Orher parameters Operating Rating ：PA66: -40～105°C Mechanical Life ：1500 Connection mode ：Nut Type
